Screwed “Barrel Type” Spring Check Valve NTC-SPV20
Logo

NTC-SPV20

high performance valves

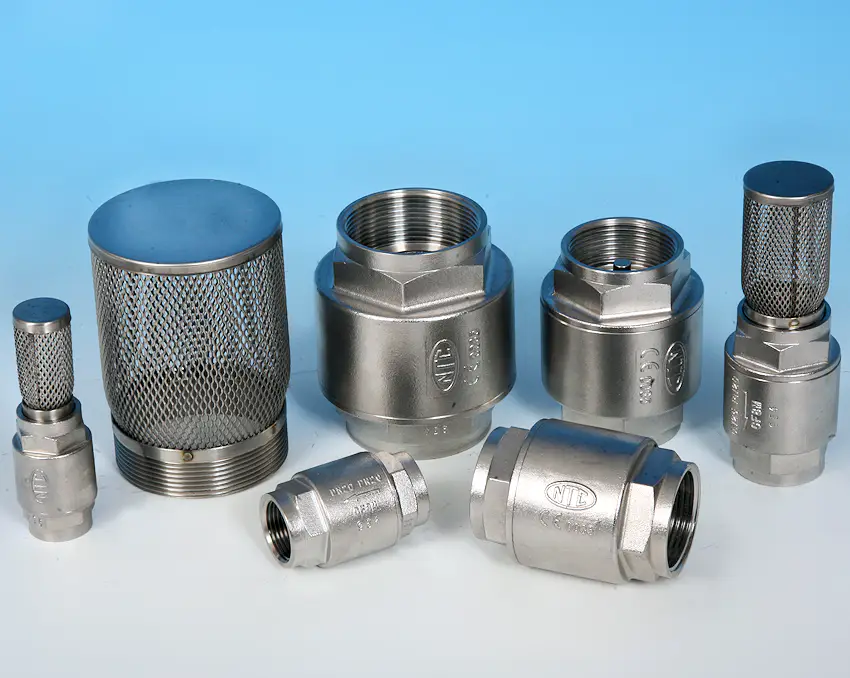

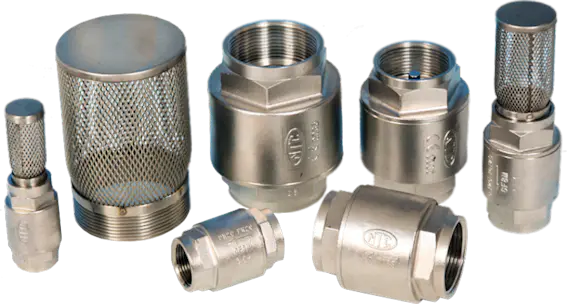

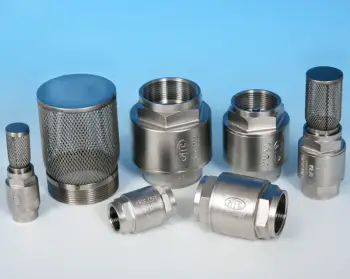

“Barrel Type” Screwed Spring Check Valve

ASTM A351 CF8M 316 Stainless Steel construction.
ASTM A351 CF8M 316 Stainless Steel construction with
Chemically Polished finish.

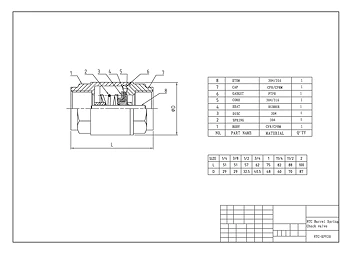

2-Pce screw together body construction.
PTFE Body Seal, Viton Seat.
20 bar pressure rated.
-20 / +120 deg C Temp rated.
BSP Screwed end connections.
CE marked in accordance with PED 97/23/EC (from 1.1/4”)

The “NTC” Spring Check Valve is unique to G.C.Supplies UK Ltd.
The valve is manufactured to our own design specifications and using our own tooling.

The valve offers substantial advantages over other spring check valves available on the market. We are able to offer full material certification. Sizes 1.1/4” - 2” are CE marked in accordance with the PED. The 2-pce body construction allows the valve to be maintained. 20 bar/g pressure rating.

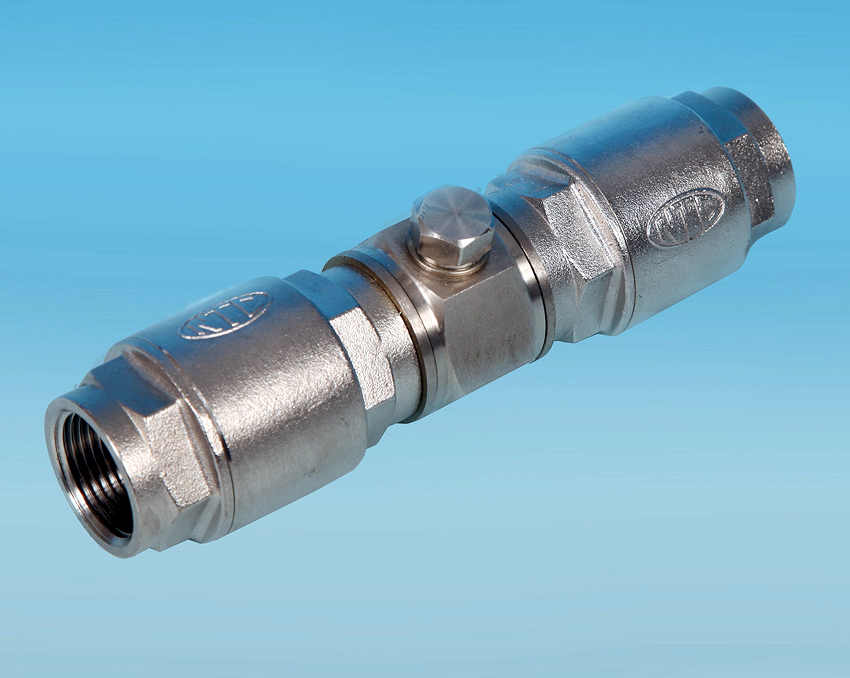

We are also able to offer this unit as a Double Check with centre Bleed Port (depicted below).

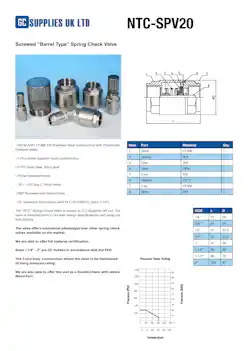

Datasheet

Datasheet For Butt-Weld 3-Piece Spring Check Valve
