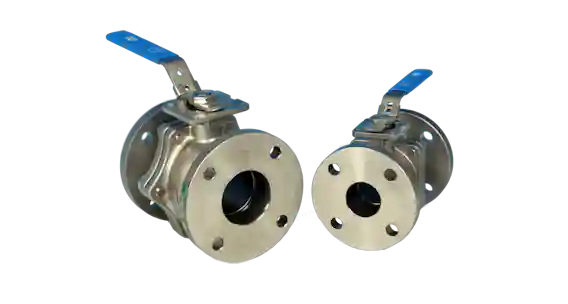

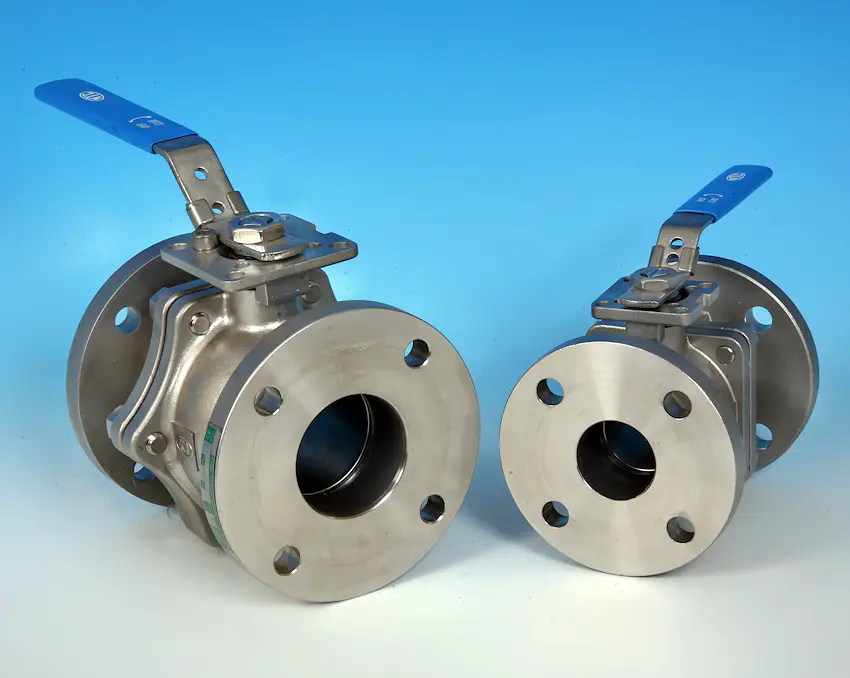

2-Pce Full Bore Flanged BS10 Table E Direct Mount Ball Valve

Firesafe Design and Construction, certified API 607 5th Ed 2005, ISO 10497-5.
ASTM A351 CF8M 316 Stainless Steel construction, 316 Trim.
TFM 1600® Ball Seats. Grafoil Body Seals and Stem packing.
Ta-Luft self adjusting stem sealing. Nace MR-0175 compliant.
ISO 5211 Direct Mounting Pad and Square Stem for automation.
Anti-Static devices for Ball-Stem-Body. ATEX approved.

TFM 1600® is an FDA & WRAS certified material.

Silicone Free. Valve suitable for use on Oil based Paints.

Options available:

50% S/S Filled PTFE Ball Seats
60 Deg V-Ball for modulation duties.
100mm high Spindle Extension for Insulation & Steam Actuation
Direct Mount Spring Handle/Lever
Fabricated Heating Jacket.
Upstream Ball and Cavity Relief hole drilled into Ball

Design Standard: ASME B16.34, API 608
Wall Thickness: ASME B16.34
Inspection & Testing: API 598, API 6D

Face to face dimension: ASME B16.10

Available sizes: 1", 1.1/2", 2”, 3" and 4" only
