Stainless Steel 2-Pce Full Bore Heavy Duty Ball Valve
Logo

NTC 2006-M3

high performance valves

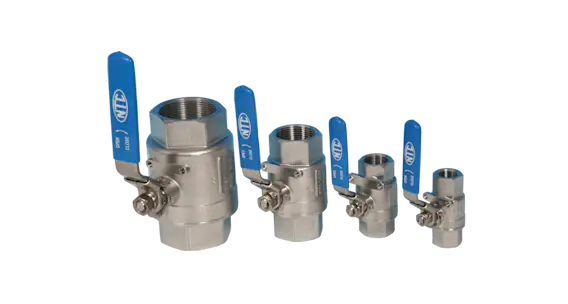

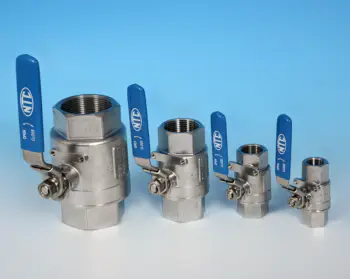

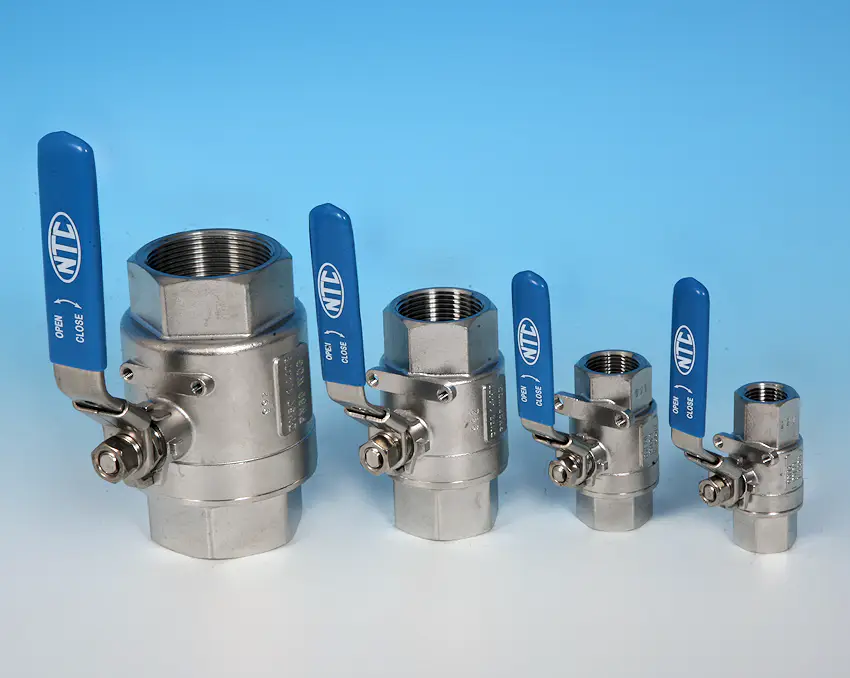

2-Pce Heavy Duty Full Bore Ball Valve

ASTM A351 CF8M 316 Stainless Steel construction, 316 Trim.
WRAS Approved TFM 1600® Seats and PTFE Seals.
Body Length in accordance with DIN 3202-M3.
Adjustable gland. Slide type Locking Lever.
1000 psi/g Pressure rated.
-20 / + 180 Deg C Temperature rated.
Pressure balance hole in Ball Slot.
1/4” up to 2” BSPT Screwed end connections.
Tapped Body Mounting Lugs. Electro-Polished Body.
CE marked (sizes 1.1/4” upward) in accordance with the PED 97/23.

A high quality, general purpose ball valve suitable for most Liquid and
Gaseous duties, especially Potable Water due to WRAS approved
Seat Materials being fitted as standard.
Full material Test Certificates available & WRAS certificate for TFM
1600® Seats.
Test standard – API 598

Available size range: 1/4” - 2”

Datasheet

Datasheet For 1-Pce Reduced Bore Ball Valve lever operated

Certification

Certified WRAS Material Approval
