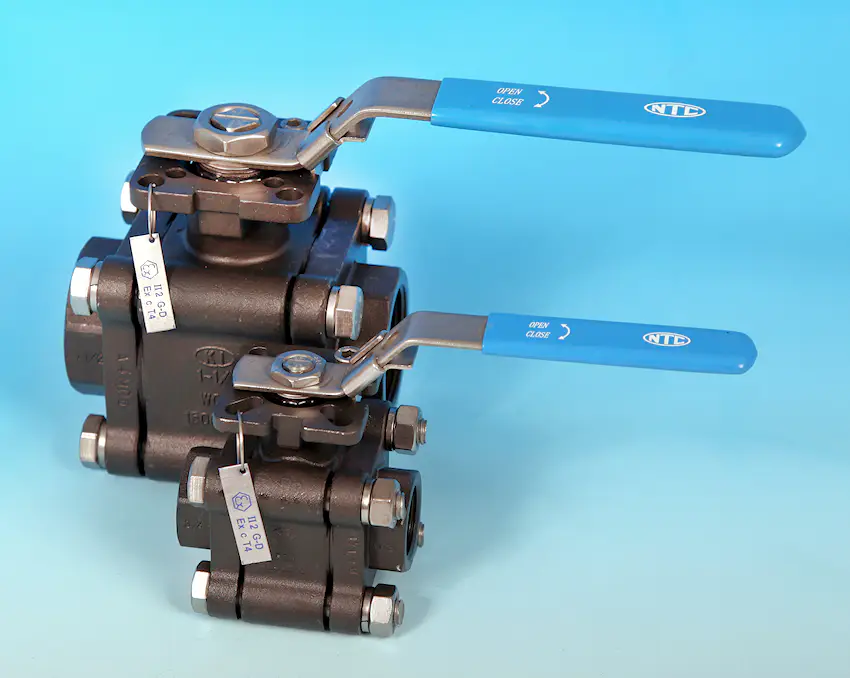

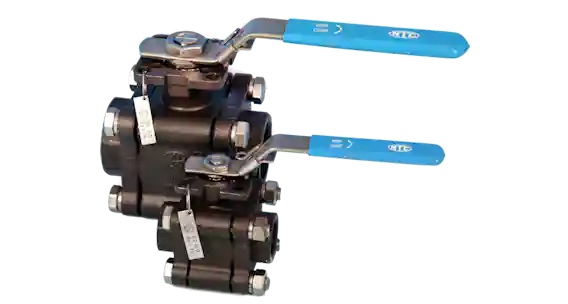

3-Pce Full Bore Heavy Duty Carbon Steel Direct Mount Ball Valve NTC-KV-L80FC L82FC
Logo

NTC KV-L80FC (Screwed Ends)
NTC KV-L82FC (Socket Weld Ends)

high performance valves

3-Pce Full Bore Heavy Duty Carbon Steel Direct Mount Ball Valve

Firesafe Design and Construction, certified API 607 5th Ed 2005, ISO 10497-5.
ASTM A216 WCB Carbon Steel construction, 304 S/S Trim.
TFM 4215® (25% Carbon Filled TFM) Ball Seats, Grafoil Body Seals and Stem Packing.
Ta-Luft self adjusting stem sealing.

TFM 4215® is a WRAS approved material.

ISO 5211 Direct Mounting Pad and Square stem for Automation.

Anti-static devices for Ball-Stem-Body. ATEX approved.
Class 800 (2000 psi) pressure rated 1/2” - 1”
Class 600 (1500 psi) 1.1/4” - 2”

Silicone Free. Valve suitable for use on Oil based Paints.

Options available:

50% S/S Filled PTFE Ball Seats50% S/S Filled PTFE Ball Seats
30, 60 and 90 Deg V-Ball for modulation duties 60 Deg V-Ball for modulation duties.
100mm/120mm high Spindle Extension for Insulation & Steam Actuation100mm high Spindle Extension for Insulation & Steam Actuation
Direct Mount Spring Handle Direct Mount Spring Handle/Lever
Valve fitted with Fabricated S/S Heating Jacket.Fabricated Heating Jacket.
Upstream Ball and Cavity Relief hole drilled into Stainless Steel BallUpstream Ball and Cavity Relief hole drilled into Ball

Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 800 (1/4" - 1") & 600 (1.1/4" - 2")
Inspection & Testing: MSS SP-110

BSP Ends - BSPP IS0 228/1

Socket-Weld Ends - ASME B16.11

Available size range: 1/2” - 2”

Additional Information:

Installation, Operation & Maintenance Instructions

Top Works (Please select a size to view information):

Top Works for 1/2" NTC KV-L80/81/82FS Top Works for 3/4" NTC KV-L80/81/82FS Top Works for 1" NTC KV-L80/81/82FS Top Works for 1.1/4" NTC KV-L80/81/82FS Top Works for 1.1/2" NTC KV-L80/81/82FS Top Works for 2" NTC KV-L80/81/82FS

Certification

Certified ATEX DNV TA-Luft FDA
