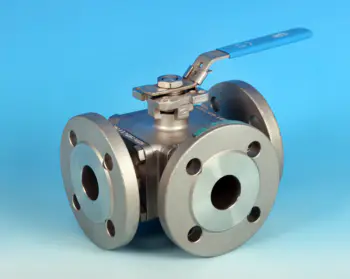

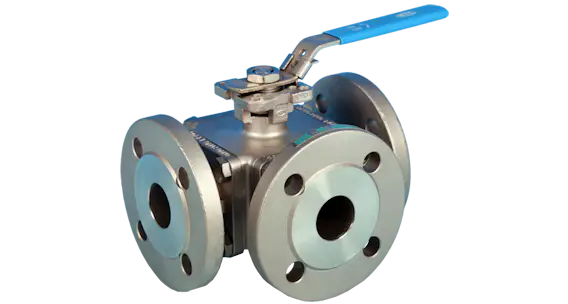

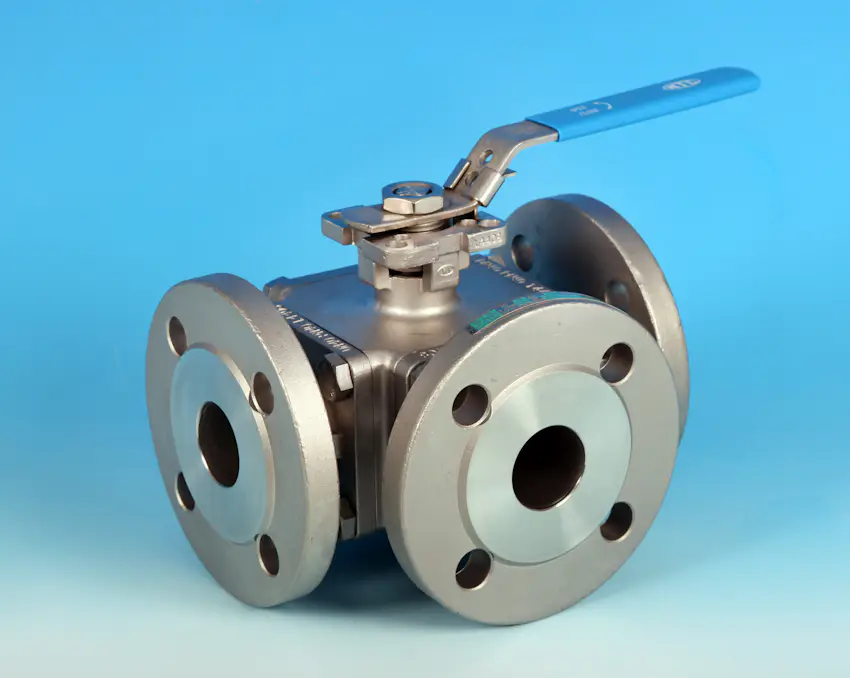

3-Way Direct Mount Flanged PN16/40 Ball Valve

ASTM A351 CF8M 316 Stainless Steel construction, 316 Trim.
TFM 1600® Ball Seats. PTFE Body and Stem seals.
Nace MR-0175 compliant. Ta-Luft self adjusting stem.
ISO 5211 Direct Mounting Pad and Square Stem for automation.
Locking Lever at 90 degree increments. Fully supported ball.

1/2” - 2” PN40 rated. 2.1/2” - 4” PN16 rated.
Anti-Static devices for Ball-Stem-Body. ATEX approved.

TFM 1600® is an FDA & WRAS certified material.

Silicone Free. Valve suitable for use on Oil based Paints.

Options available:

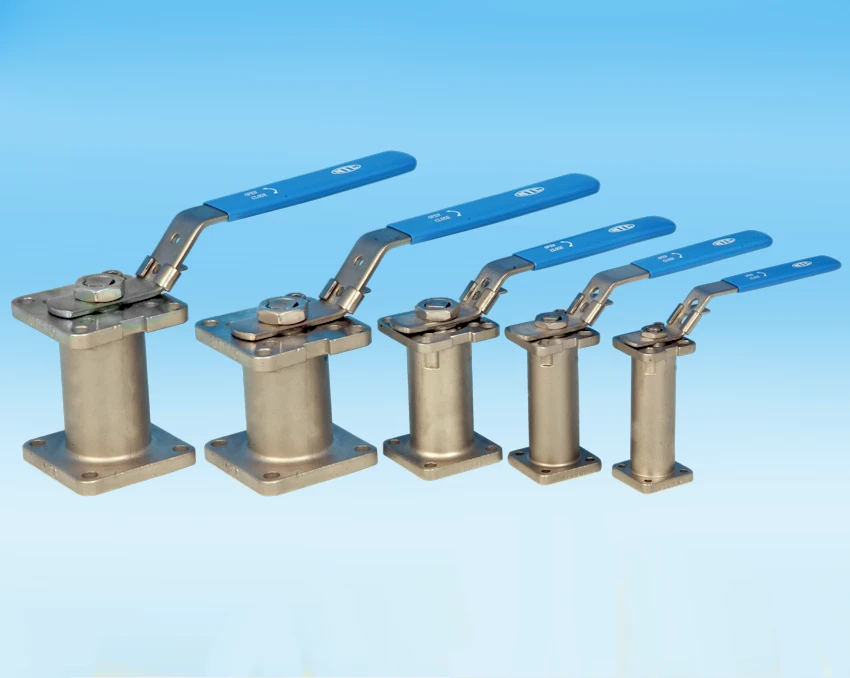

100mm high Spindle Extension for Insulation & Steam Actuation

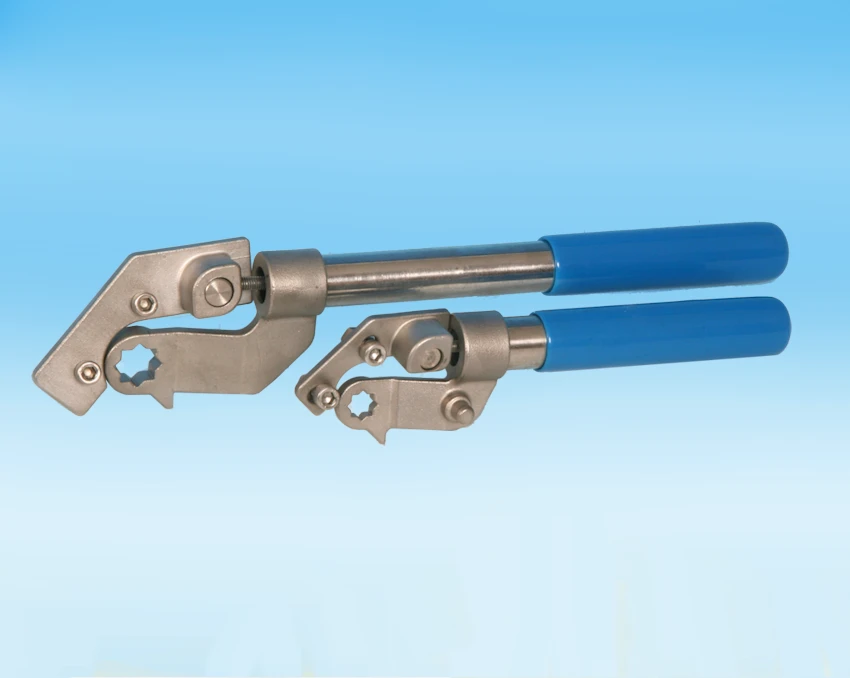

Direct Mount Spring Handle/Lever

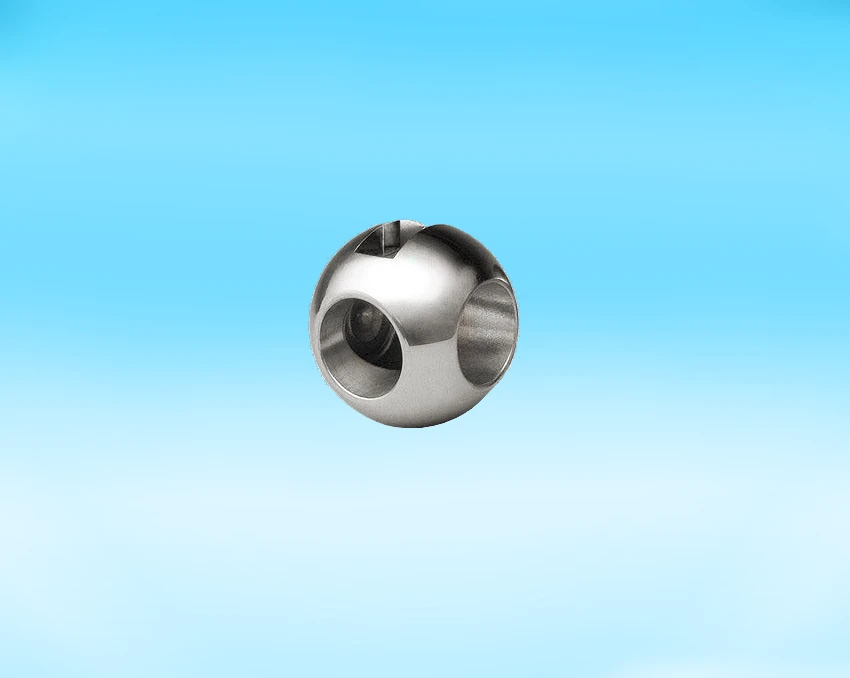

L-Port Ball Configuration

Design Standard: DIN 3375/1,2. EN12516-1
Wall Thickness: ASME 16.34
Inspection & Testing: DIN 3230/3, EN12266

Available size range: 1/2” - 4”
