high performance valves
Firesafe Design and Construction, certified API 607 5th Ed 2005, ISO 10497-5.
ASTM A351 CF8M 316 Stainless Steel construction, 316 Trim.
TFM 1600® Ball Seats. Grafoil Body Seals and Stem packing.
Nace MR-0175 compliant.

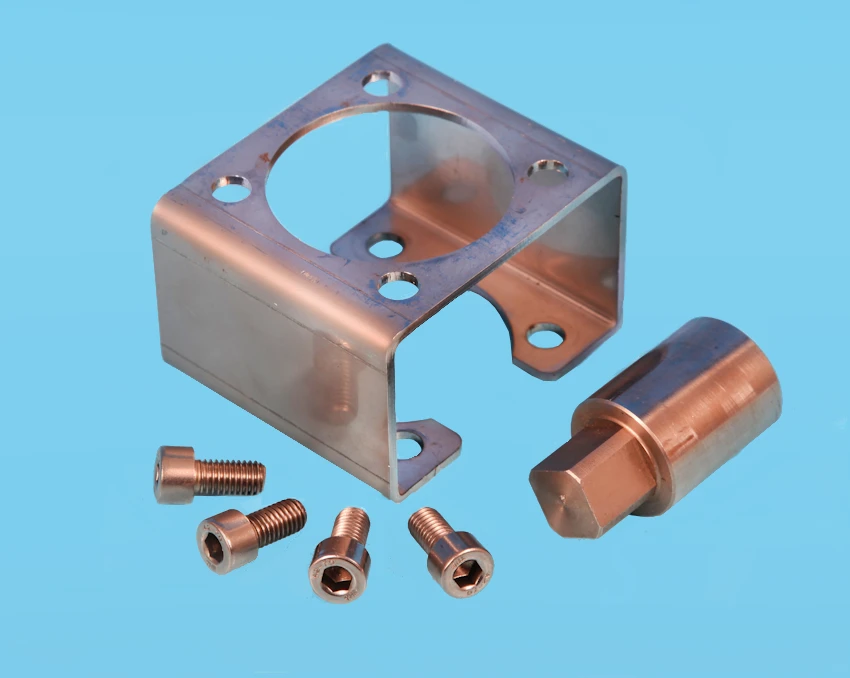

ISO 5211 Non-Direct Mounting Pad (except 6" which is Direct Mount). Locking Lever
Anti-Static devices for Ball-Stem-Body. ATEX approved.
TFM 1600® is an FDA & WRAS certified material.
Silicone Free. Valve suitable for use on Oil based Paints.
50% S/S Filled PTFE Ball Seats
60 Deg V-Ball for modulation duties.

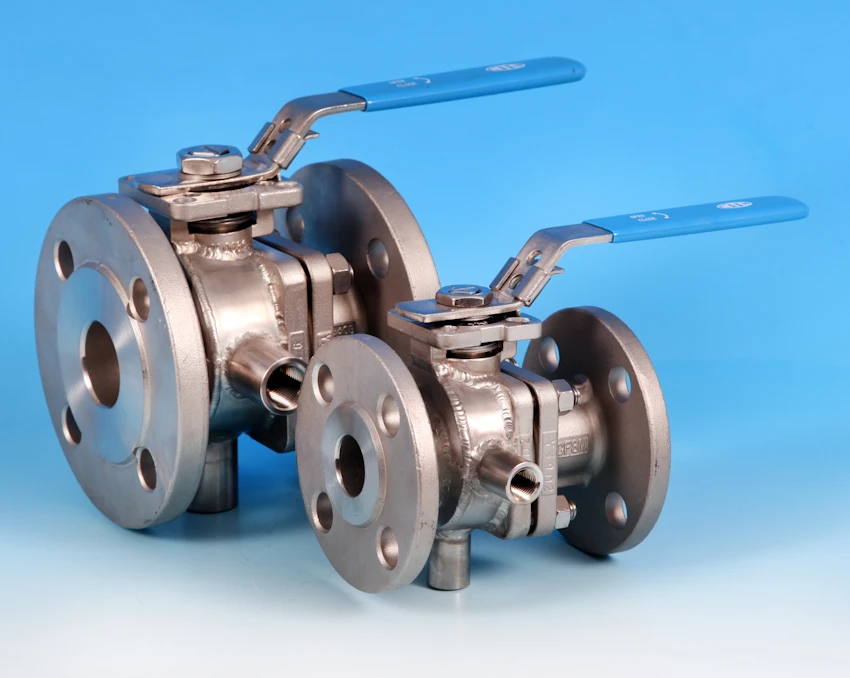

Fabricated Heating Jacket.
Upstream Ball and Cavity Relief hole drilled into Ball
Installation, Operation & Maintenance Instructions
Top Works (Please select a size to view information):
