S/S 3-Way BSP Screwed Reduced Port Direct Mount Ball

NTC KV-L50 (L-Port)
NTC KV-L51 (T-Port)

high performance valves

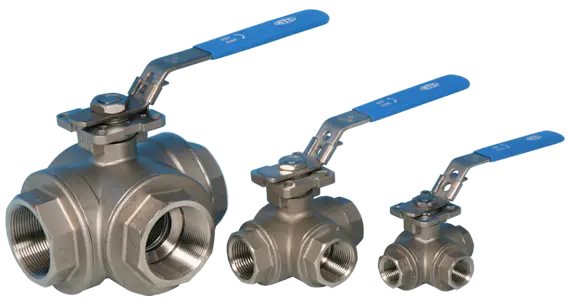

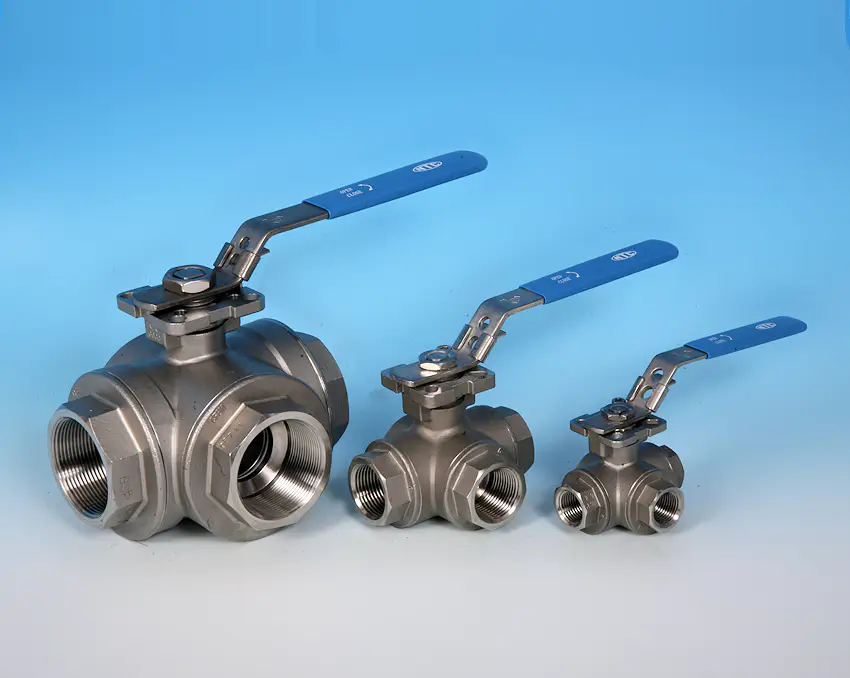

3-Way Screwed Direct Mount Ball Valve

ASTM A351 CF8M 316 Stainless Steel construction, 316 Trim.
TFM 1600® Seats and Seals. Ta-Luft self adjusting stem sealing.
ISO 5211 Direct Mounting Pad and Square Stem for automation.
Anti-Static devices for Ball-Stem-Body.
ATEX approved. Screwed BSP & NPT.
Locking Lever at 90 degree increments.
1000 psi/g pressure rated.
Nace MR-0175 compliant.

1/4" & 3/8" are Full Bore. 1/2" - 4" are Reduced Bore.

TFM 1600® is an FDA & WRAS certified material.

Silicone Free. Valve suitable for use on Oil based Paints.

Options available:

100mm/120mm high Spindle Extension for Insulation & Steam Actuation100mm high Spindle Extension for Insulation & Steam Actuation
Direct Mount Spring Handle Direct Mount Spring Handle/Lever

Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 400
Inspection & Testing: MSS SP-110

BSP Ends - IS0 7-1 Rp

NPT Ends - ASME B1.20.1

Available size range: 1/4” - 2”

Additional Information:

Installation, Operation & Maintenance Instructions

Torque Values

Top Works (Please select a size to view information):

Top Works for 1/4" NTC KV-L50 Top Works for 3/8" NTC KV-L50 Top Works for 1/2" NTC KV-L50 Top Works for 3/4" NTC KV-L50 Top Works for 1" NTC KV-L50 Top Works for 1.1/4" NTC KV-L50 Top Works for 1.1/2" NTC KV-L50 Top Works for 2" NTC KV-L50


Certified ATEX Certificate DNV Certificate TA-Luft Certificate FDA Certificate
