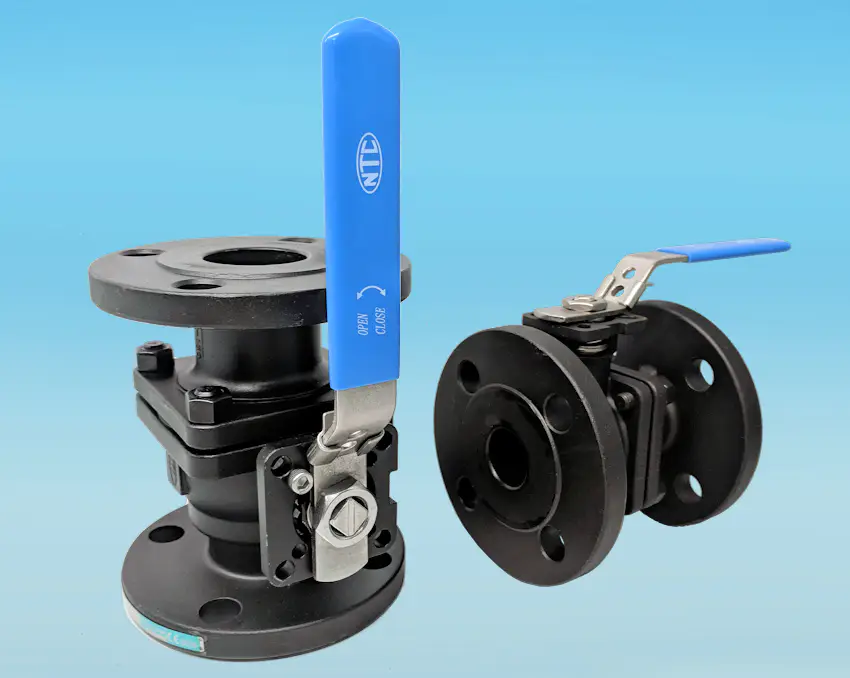

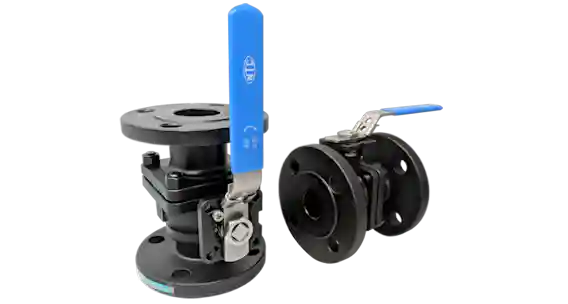

high performance valves
Firesafe Design and Construction, certified API 607 5th Ed 2005, ISO 10497-5.
ASTM A216 WCB Carbon Steel construction, 304 Trim.
TFM 1600® Ball Seats. Grafoil/316 Body Seal and Grafoil Stem packing.
Ta-Luft self adjusting stem sealing. ISO 15848 Certified.
ISO 5211 Direct Mounting Pad and Square Stem for automation.
Anti-Static devices for Ball-Stem-Body. ATEX certified.
TFM 1600® is an FDA & WRAS certified material.
Silicone Free. Valve suitable for use on Oil based Paints.
1/2" - 2.1/2" Lever Operated with Locking Device
3" - 6" T-Bar Operated with Locking Device
Available size range: 1/2” - 6”
50% S/S Filled PTFE Ball Seats
60 Deg V-Ball for modulation duties.
100mm high Spindle Extension for Insulation & Steam Actuation
Direct Mount Spring Handle/Lever
Upstream Ball and Cavity Relief hole drilled into Ball
Double Block & Bleed Assembly
Design Standard: ASME B16.34
Wall Thickness: ASME B16.34
Inspection & Testing: API 598

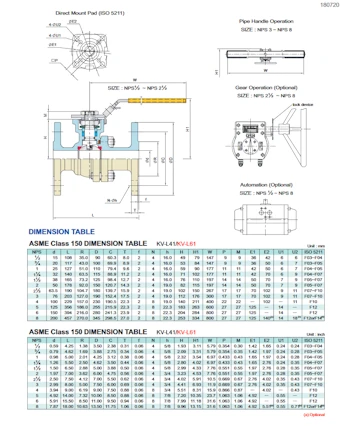

Face to Face Dimension: ASME B16.10
Installation, Operation & Maintenance Instructions
MAST (Maximum Allowable Stem Torque)
Top Works (Please select a size to view information):
