Wafer Pattern Flanged DIN PN16/40 Ball Valve NTC KV-L7K/7N


high performance valves

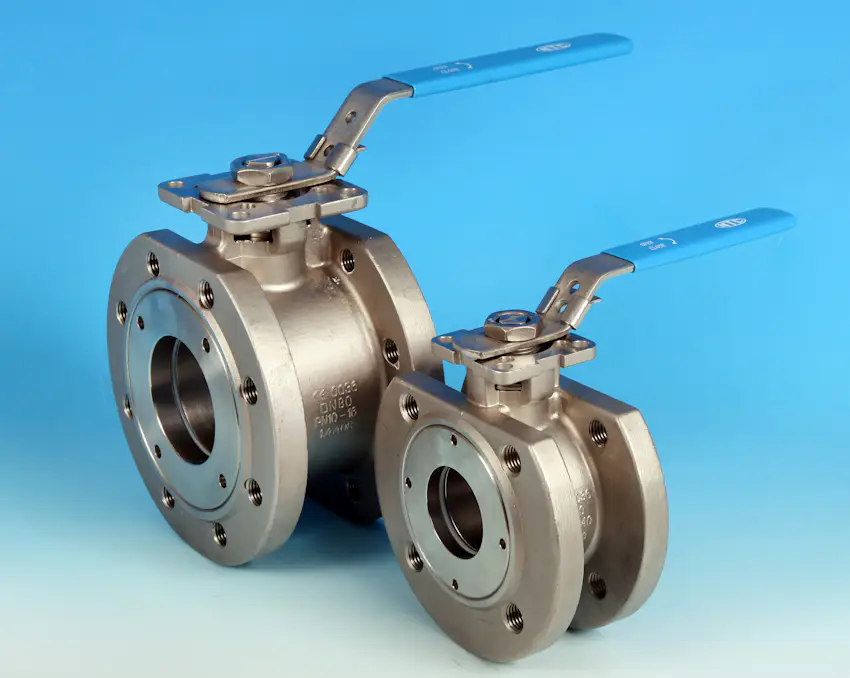

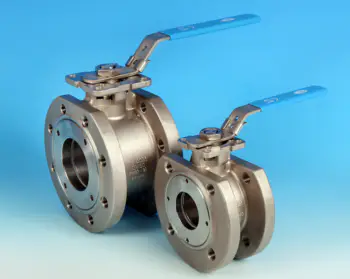

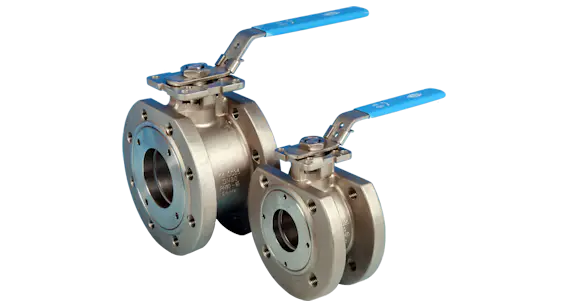

Wafer Pattern Flanged DIN PN16/40 Ball Valve

TFM 1600® Ball Seats. PTFE Body and Stem seals.
Nace MR-0175 compliant. Ta-Luft self adjusting stem.
ISO 5211 Direct Mounting Pad and Square Stem for automation.
Locking Lever. 1" - 2” PN40 rated. 2.1/2” - 6” PN16 rated.
Anti-Static devices for Ball-Stem-Body.
ATEX approved.

TFM 1600® is an FDA & WRAS certified material.

Silicone Free. Valve suitable for use on Oil based Paints.

Options available:

100mm/120mm high Spindle Extension for Insulation & Steam Actuation100mm high Spindle Extension for Insulation & Steam Actuation
Direct Mount Spring HandleDirect Mount Spring Handle/Lever
30, 60 and 90 Deg V-Ball for modulation duties60 Deg V-Ball for modulation duties.

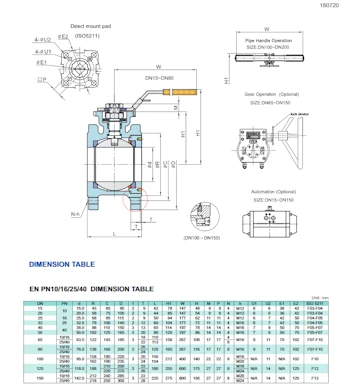

Design Standard: DIN 3375/1,2. EN12516-1

Wall Thickness: EN12516-1
Inspection & Testing: DIN 3230/3, EN12266

Available size range: 1” - 6”


Certified ATEX Certificate DNV Certificate TA-Luft Certificate FDA Certificate
