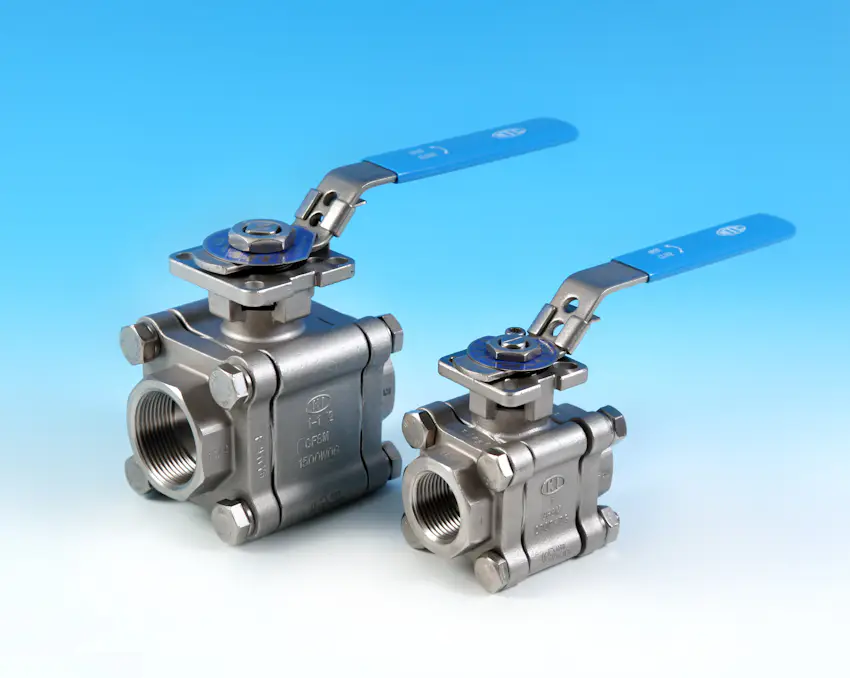

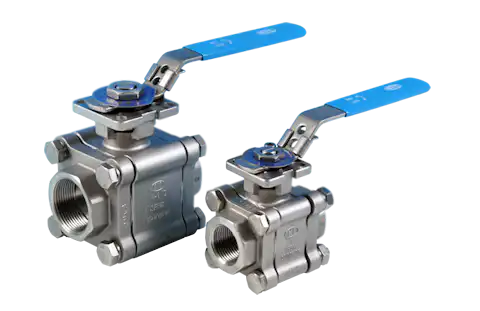

NTC KV-L80HT/FS (Screwed Ends)
High Temperature version

high performance valves

3-Pce Full Bore Heavy Duty Stainless Steel Direct Mount Ball Valve with PEEK® Seats

Firesafe Design and Construction, certified API 607 5th Ed 2005, ISO 10497-5.
ASTM A351 CF8M 316 Stainless Steel construction, 316 Trim with ENP (Electo-Nickel Plated) Ball.
PEEK® (Polyether Ether Ketone) Ball Seats, Grafoil Body Seals and Stem Packing.
Ta-Luft self adjusting stem sealing. Nace MR-0175 compliant.

ISO 5211 Direct Mounting Pad and Square stem for Automation.
Anti-static devices for Ball-Stem-Body. ATEX approved.
Class 800 (2000 psi) pressure rated - 1”
Class 600 (1500 psi) 1.1/2” - 2”

Options available:

100mm/120mm high Spindle Extension for Insulation & Steam Actuation100mm high Spindle Extension for Insulation & Steam Actuation
Direct Mount Spring Handle/LeverDirect Mount Spring Handle/Lever

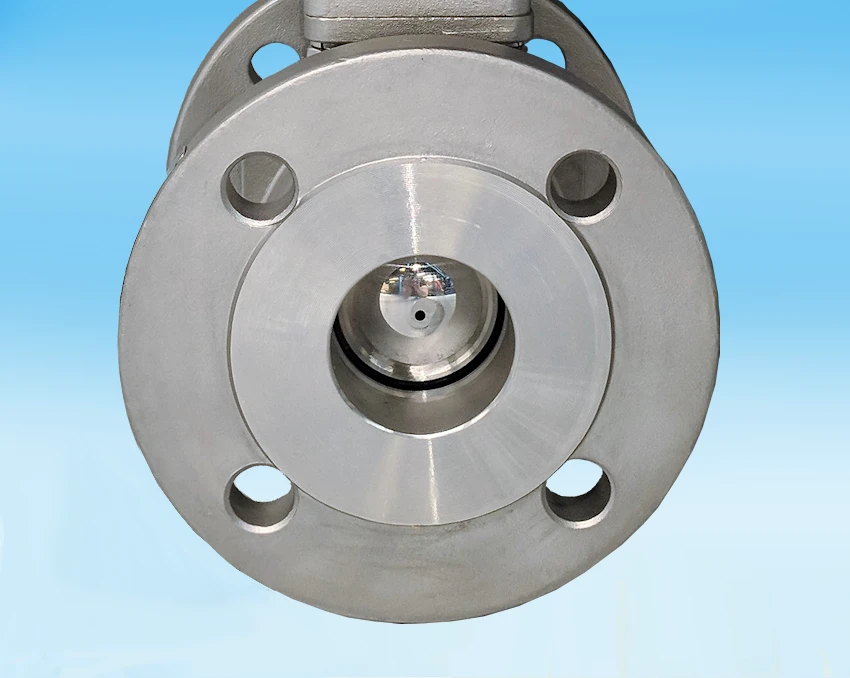

Upstream Ball and Cavity Relief hole drilled into Stainless Steel BallUpstream Ball and Cavity Relief hole drilled into Ball

Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 800 (1") & 600 (1.1/2" - 2")
Inspection & Testing: MSS SP-110

BSP Ends - BSPP IS0 228/1

Available size range: 1” - 2”


Certified ATEX DNV TA-Luft FDA
