Screwed “Barrel Type” Spring Check Valve ETG-SPV100


high performance valves

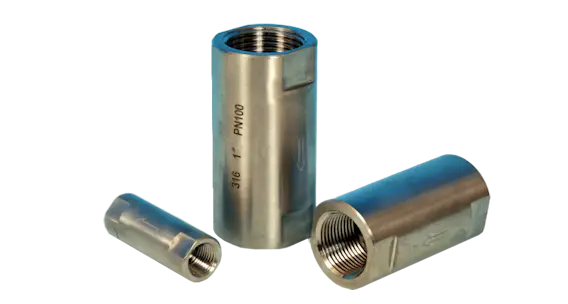

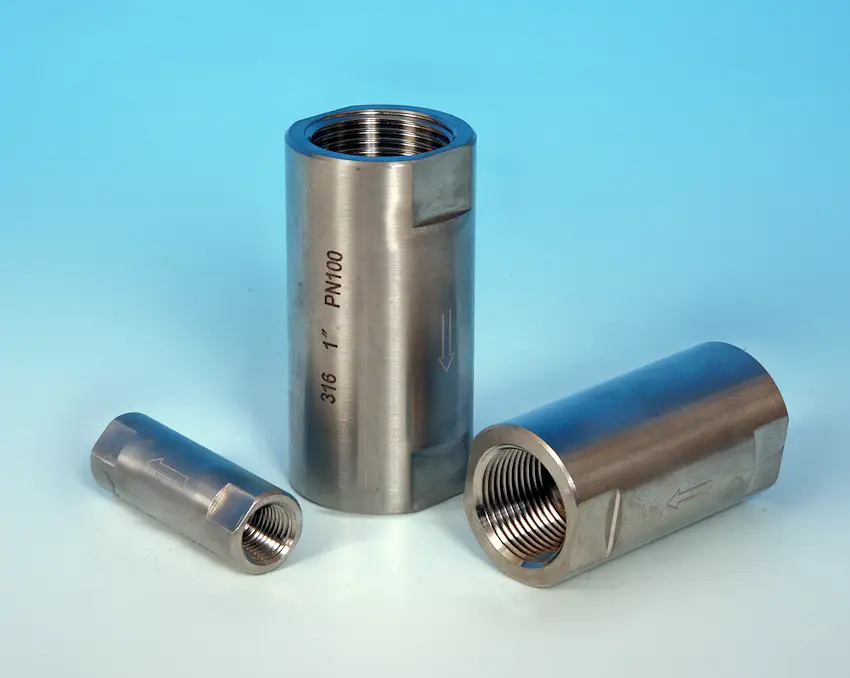

Screwed “Barrel Type” Spring Check Valve

316L Stainless Steel Solid Bar Body Construction.
Viton 'O' Ring Seal.
100 bar pressure rated.
-20 / +120 deg C Temp rated.
BSP Screwed end connections.

The “SPV100” is manufactured from solid Stainless Steel Bar making it suitable for much higher pressure applications than the NTC SPV20 Barrel Check Valve.
The valve is ideal for low – medium pressure hydraulic, pneumatic and instrumentation applications where a bubble tight seal is a must.

We are also able to offer this unit as a Double Check Valve with
centre Bleed Port (please ask for details).

Available size range: 1/4” - 1”

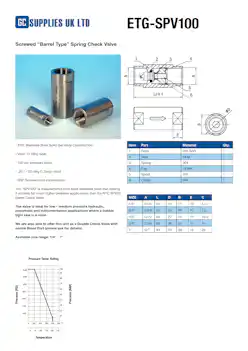

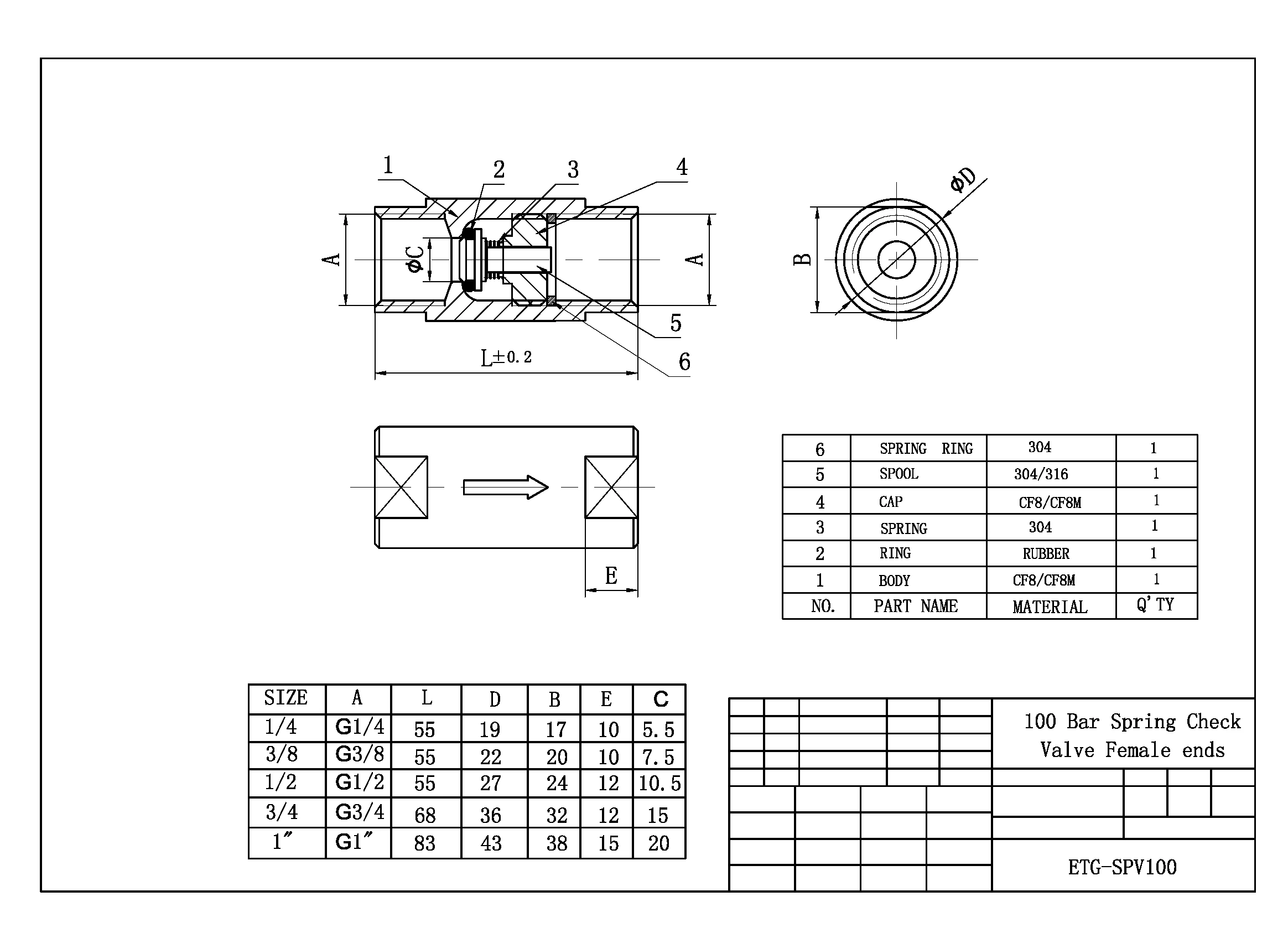

Datasheet For Screwed 'Barrel' Spring Check Valve
