Valve Wheel

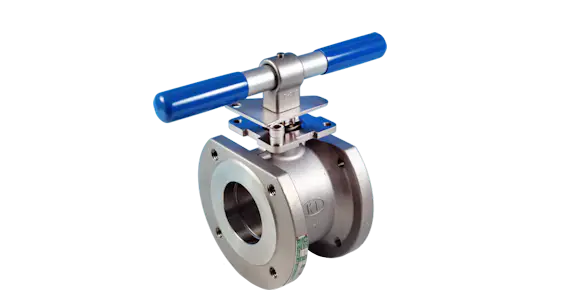

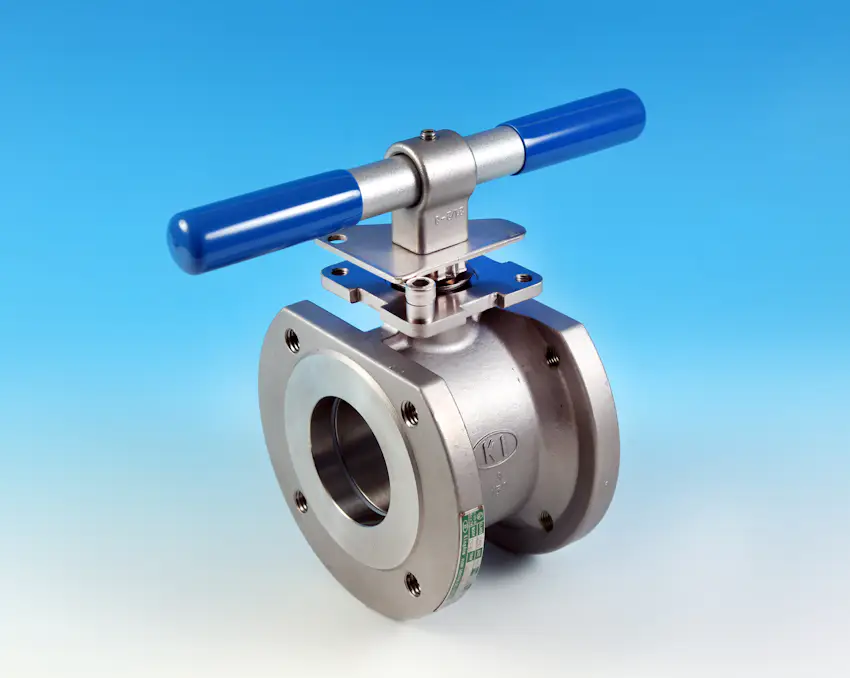

Wafer Pattern Flanged ANSI 150 Ball Valve NTC KV-071

NTC KV-071

high performance valves

Wafer Pattern Flanged ANSI 150 Ball Valve

ASTM A351 CF8M 316 Stainless Steel construction, 316 Trim.
TFM 1600® Ball Seats. PTFE Body and Stem seals.
Nace MR-0175 compliant. Ta-Luft approved Stem Sealing.
ISO 5211 Non-Direct Mounting Pad (bracket & coupling required).
Locking Lever.
Anti-Static devices for Ball-Stem-Body.
ATEX approved.

TFM 1600® is an FDA & WRAS certified material.

Silicone Free. Valve suitable for use on Oil based Paints.

Options available:

30, 60 and 90 Deg V-Ball for modulation duties30, 60 and 90 Deg V-Ball for modulation duties.

Fire safe version available to API 607 5th Ed, ISO 14097
Design Standard: ASME B16.34, API 608

Wall Thickness: ASME B16.34
Inspection & Testing: API 598, API 6D

Available size range: 2” - 4”

Actuator Kit required for Automation.


Certified ATEX Certificate DNV Certificate TA-Luft Certificate FDA Certificate
