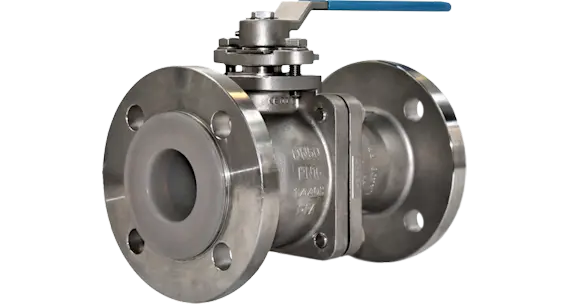

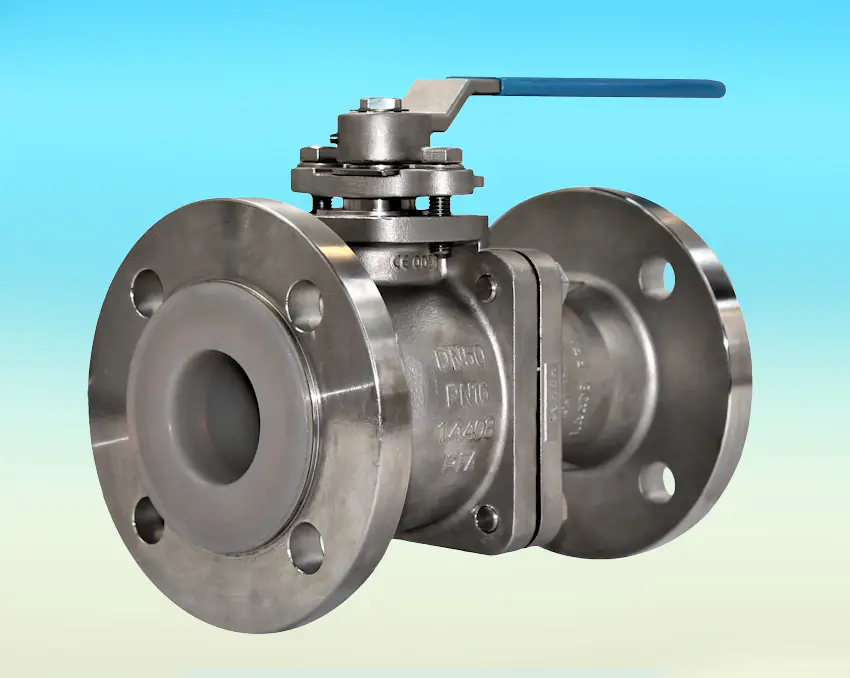

ASTM A351 CF8M 316 Stainless Steel construction, 316 Trim.
PTFE Ball Seats & Stem Packing.
PFA Lined Body, Ball & Stem.
ISO 5211 Non-Direct Mounting Pad for automation.
PFA Liner is securely "Dovetailed" into valve body.
100% Electro-static Spark tested to ensure PFA Liner integrity.
1" - 2" Lever Operated with Locking Device
3" - 4" T-Bar Operated with Locking Device
Available size range: 1” - 4”
Design Standard: ASME B16.34
Face to Face: ASME B16.10
Pressure rating: ASME Class 150#
Wall Thickness: ASME B16.34
Inspection & Testing: API 598
