high performance valves

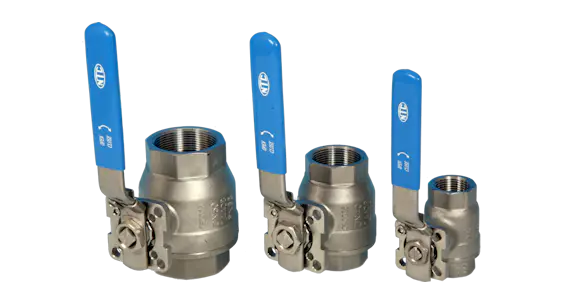

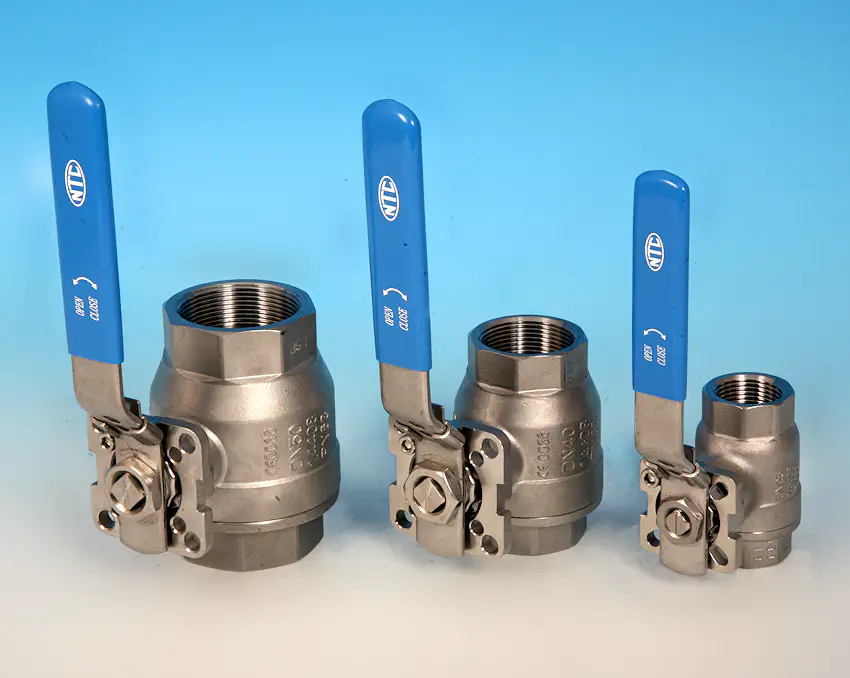

NTC KV-L20

2-Pce Full Bore Direct Mount Ball Valve

ASTM A351 CF8M 316 Stainless Steel construction, 316 Trim.
TFM 1600® Ball Seats and Seals. Ta-Luft self adjusting stem.
ISO 5211 Direct Mounting Pad and Square Stem for automation.
Anti-Static devices for Ball-Stem-Body. ATEX approved.
1000 psi/g pressure rated. Nace MR-0175 compliant.

BSP Ends - BSPP ISO 228/1

TFM 1600® is an FDA & WRAS certified material.

Silicone Free. Valve suitable for use on Oil based Paints.

Options available:

100mm high Spindle Extension for Insulation & Steam Actuation
Direct Mount Spring Handle/Lever

Upstream Ball and Cavity Relief hole drilled into Ball

Design Standard: MSS SP-110
Wall Thickness: EN 12516-3
Inspection & Testing: MSS SP-110

Available size range: 1/4” - 3”


Installation, Operation & Maintenance Instructions

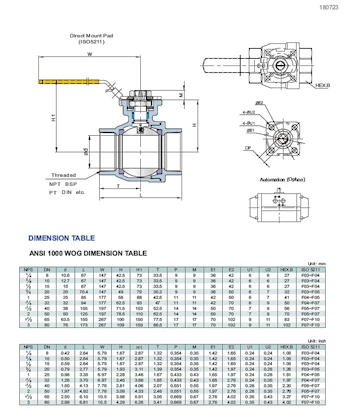

Top Works Please select a size to view information:
Stainless Steel 2-Pce Full Bore Direct Mount Ball Valve screwed end connections NTC KV-L20 Stainless Steel 2-Pce Full Bore Direct Mount Ball Valve screwed end connections NTC KV-L20 Stainless Steel 2-Pce Full Bore Direct Mount Ball Valve screwed end connections NTC KV-L20 Stainless Steel 2-Pce Full Bore Direct Mount Ball Valve screwed end connections NTC KV-L20 Stainless Steel 2-Pce Full Bore Direct Mount Ball Valve screwed end connections NTC KV-L20 Stainless Steel 2-Pce Full Bore Direct Mount Ball Valve screwed end connections NTC KV-L20 Stainless Steel 2-Pce Full Bore Direct Mount Ball Valve screwed end connections NTC KV-L20 Stainless Steel 2-Pce Full Bore Direct Mount Ball Valve screwed end connections NTC KV-L20 Stainless Steel 2-Pce Full Bore Direct Mount Ball Valve screwed end connections NTC KV-L20 Stainless Steel 2-Pce Full Bore Direct Mount Ball Valve screwed end connections NTC KV-L20

For more information on all our other product ranges, visit www.gcstainless.co.uk

Certification

Certified ATEX Certificate DNV Certificate TA-Luft Certificate FDA Certificate
