NTC KV-L9C/B BS4825 Clamp Ferrule Ends

high performance valves

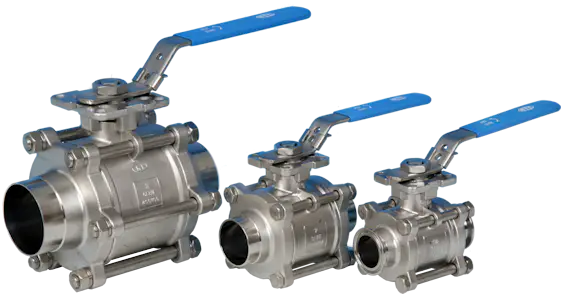

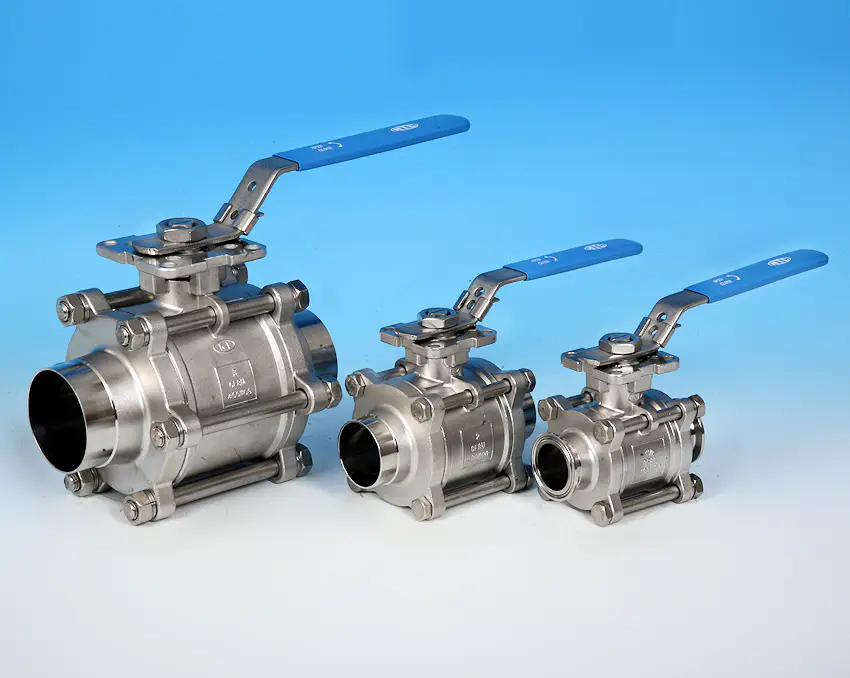

3-Pce Full Bore Hygienic/Sanitary Cavity Filled Direct Mount Ball Valve with Clamp Ferrule Ends

ASTM A351 CF8M 316 Stainless Steel body construction, 316 Trim.

TFM 1600® Cavity Filled Seats and Seals.
Ta-Luft self adjusting stem sealing. Nace MR-0175 compliant.
ISO 5211 Direct Mounting Pad and Square Stem for automation.
Anti-Static devices for Ball-Stem-Body. ATEX approved.
400 psi/g pressure rated.
Chemically polished external surface, Mechanical polish Ra 32 / 0.8um Internal.

Suitable for Clean Steam and Steam Sterilisation duties up to 200 Deg C

Silicone Free. Valve is suitable for use on Oil based Paints.

Certified as being non-Bovine and TSE (Transmissible Spongiform Encephalopathy) Free for all manufacturing and packaging processes

Options available:

100mm/120mm high Spindle Extension for Insulation & Steam Actuation100mm high Spindle Extension for Insulation & Steam Actuation
Direct Mount Spring Handle Direct Mount Spring Handle/Lever

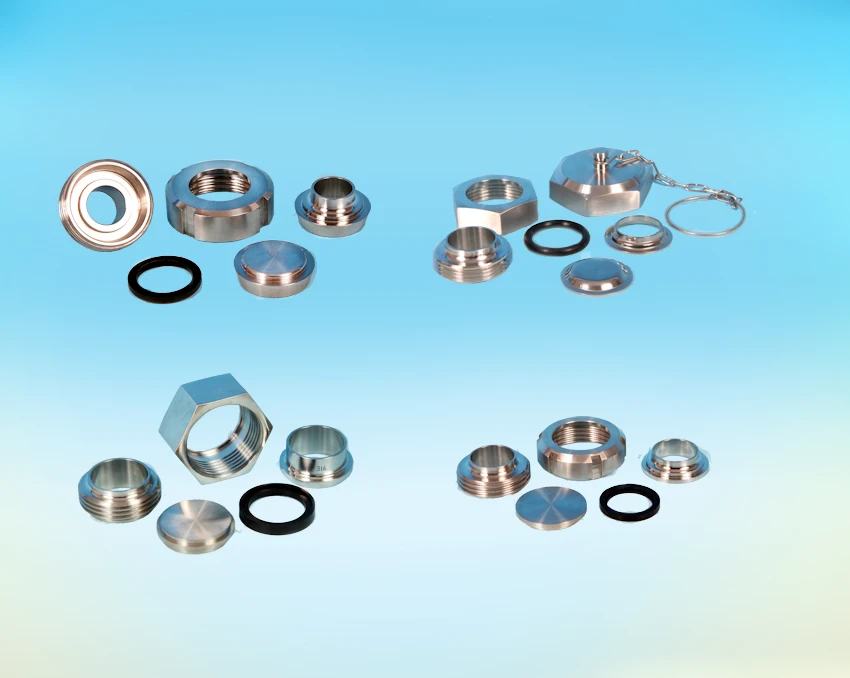

Mating Union Parts and Seals available from stockMating Union Parts and Seals available from stock
Cavity Filled TFM 1600 Ball SeatsTFM 1600 Cavity Filled Ball Seats

Design Rating: MSS SP-110, BS4825
Inspection & Testing: MSS SP-110

End connections: BS4825 Clamp Ferrule

Available size range: 1/2” - 4”

Datasheet

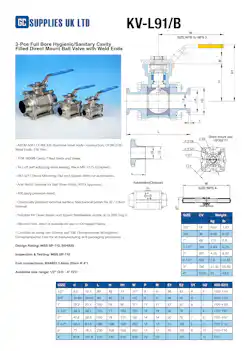

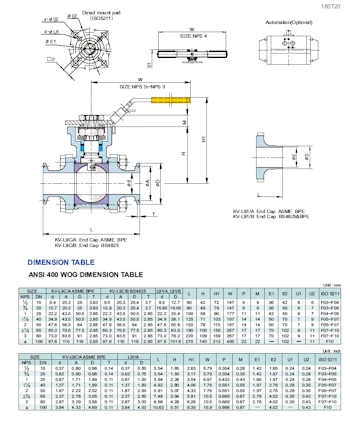

Datasheet For 3-Pce Full Bore Hygienic/Sanitary Cavity Filled Direct Mount Ball Valve with Clamp Ferrule Ends Datasheet For S/S 3-Pce Full Bore Hygienic/Sanitary Cavity Filled Direct Mount Ball Valve with Clamp Ferrule Ends

Additional Information:

Installation, Operation & Maintenance Instructions

Top Works (Please select a size to view information):

Top Works for 1/2" NTC KV-L9C/B Top Works for 3/4" NTC KV-L9C/B Top Works for 1" NTC KV-L9C/B Top Works for 1.1/4" NTC KV-L9C/B Top Works for 1.1/2" NTC KV-L9C/B Top Works for 2" NTC KV-L9C/B Top Works for 2.1/2" NTC KV-L9C/B Top Works for 3" NTC KV-L9C/B Top Works for 4" NTC KV-L9C/B

Certification

Certified ATEX Certificate DNV Certificate TA-Luft Certificate FDA Certificate BOVINEFREE Certificate
