high performance valves

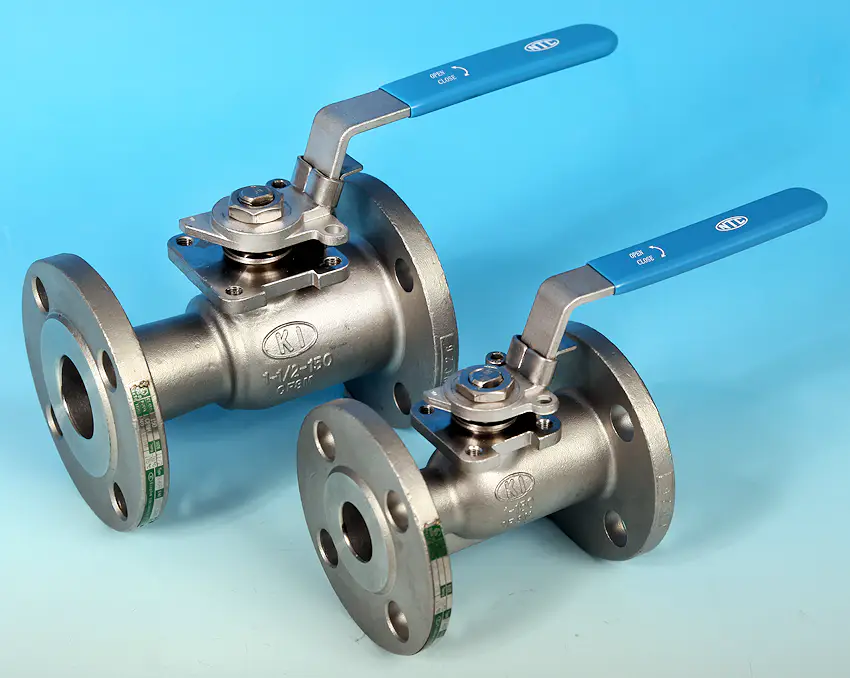

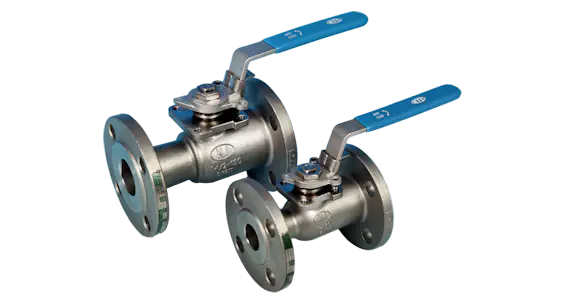

1-Pce Reduced Bore Flanged ANSI 150 Ball Valve

Firesafe Design and Construction, certified API 607 5th Ed 2005, ISO 10497.
ASTM A351 CF8M 316 Stainless Steel construction, 316 Trim.
TFM 1600® Ball Seats. Grafoil Seals and Stem packing.
Nace MR-0175 compliant.
ISO 5211 Non-Direct Mounting Pad. Locking Lever.
Anti-Static devices for Ball-Stem-Body. ATEX approved.

TFM 1600® is an FDA & WRAS certified material.

Silicone Free. Valve suitable for use on Oil based Paints.

Options available:

Fabricated Heating Jacket

Upstream Ball and Cavity Relief hole drilled into Ball

Design Standard: ASME B16.34, API 608

Wall Thickness: ASME B16.34
Inspection & Testing: API 598, API 6D

Available size range: 1” - 4”

Actuator Kit required for Automation.


Certified ATEX Certificate DNV Certificate Firesafe Certificate
