2-Pce Full Bore Flanged DIN PN40 Stainless Steel Direct Mount Ball Valve NTC KV-L6N PN40
Logo

NNTC KV-L6N PN40 Flanged

high performance valves

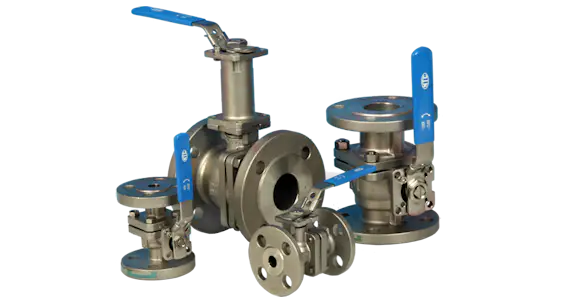

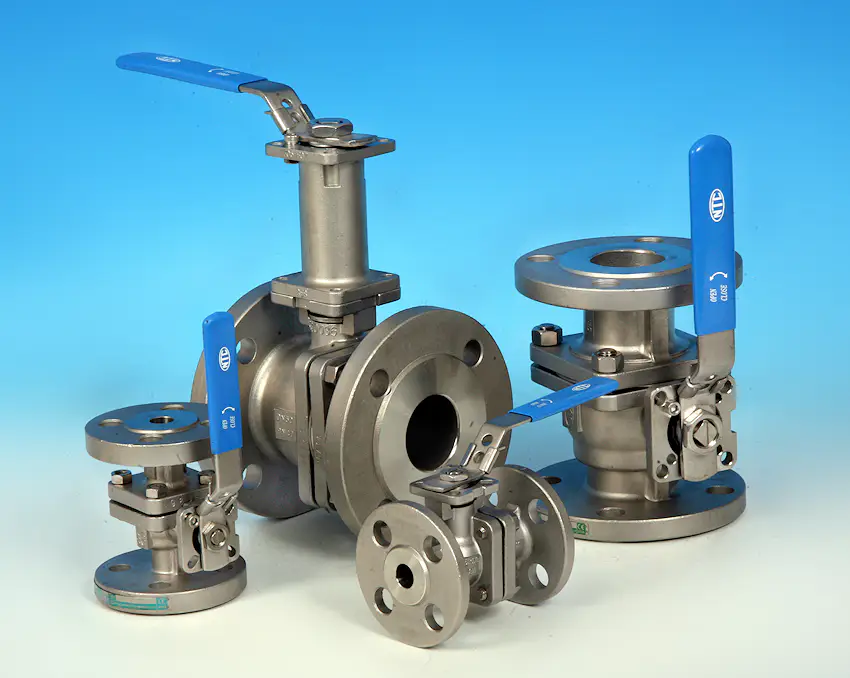

2-Pce Full Bore Flanged DIN PN40 Direct Mount Ball Valve

Firesafe Design and Construction, certified API 607 5th Ed 2005, ISO 10497-5.

ASTM A351 CF8M 316 Stainless Steel construction, 316 Trim.
TFM 1600® Ball Seats. Grafoil/316 Body Seal and Grafoil Stem packing.
Ta-Luft self adjusting stem sealing. ISO 15848 Certified.
ISO 5211 Direct Mounting Pad and Square Stem for automation.
Anti-Static devices for Ball-Stem-Body. ATEX Certified.
TFM 1600® is an FDA & WRAS certified material.
Silicone Free. Valve suitable for use on Oil based Paints.

1/2" - 2.1/2" Lever Operated with Locking Device
3" - 8" T-Bar Operated with Locking Device

Available size range: 1/2” - 6”

Please see KV-L6K for PN16 Flanged Valves

Options available:

50% S/S Filled PTFE Ball Seats50% S/S Filled PTFE Ball Seats
30, 60 and 90 Deg V-Ball for modulation duties60 Deg V-Ball for modulation duties.
100mm/120mm high Spindle Extension for Insulation & Steam Actuation100mm high Spindle Extension for Insulation & Steam Actuation
Direct Mount Spring HandleDirect Mount Spring Handle/Lever
Valve fitted with Fabricated S/S Heating Jacket.Fabricated Heating Jacket.
Upstream Ball and Cavity Relief hole drilled into Stainless Steel BallUpstream Ball and Cavity Relief hole drilled into Ball
Carbon Steel 2-Pce Full Bore Flanged ANSI 150 Direct Mount Ball Valve NTC KV-L61-CDouble Block & Bleed Assembly

Design Rating: DIN3357 / 1,2,EN 12516-1
Wall Thickness: ASME B16.34, EN12516-1
Inspection & Testing: DIN3230/3, EN 12266

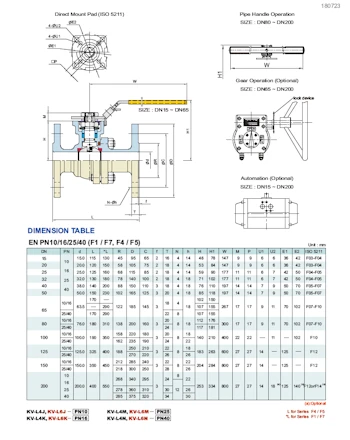

Face to Face Dimension:
DIN 3202 F-4 (1/2" - 4") and DIN 3202 F-5 (5" - 6")

Approvals:

Additional Information:

Installation, Operation & Maintenance Instructions

MAST (Maximum Allowable Stem Torque)

Top Works (Please select a size to view information):

Top Works for 1/2" NTC KV-L6N PN40 Top Works for 3/4" NTC KV-L6N PN40 Top Works for 1" NTC KV-L6N PN40 Top Works for 1.1/4" NTC KV-L6N PN40 Top Works for 1.1/2" NTC KV-L6N PN40 Top Works for 2" NTC KV-L6N PN40 Top Works for 2.1/2" NTC KV-L6N PN40 Top Works for 3" NTC KV-L6N PN40 Top Works for 4" NTC KV-L6N PN40 Top Works for 5" NTC KV-L6N PN40 Top Works for 6" NTC KV-L6N PN40

Certification

Certified ATEX Certificate DNV Certificate TA-Luft Certificate FDA Certificate Firesafe Certificate
