high performance valves

NTC KV-L80FS (Screwed Ends)
NTC KV-L81FS (Butt Weld Ends)
NTC KV-L82FS (Socket Weld Ends)

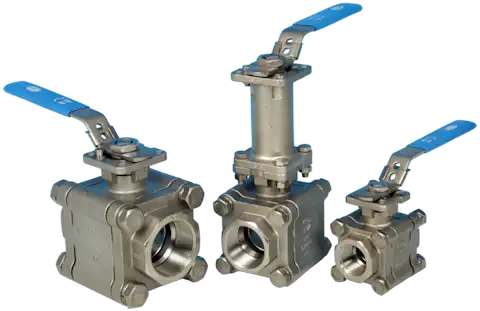

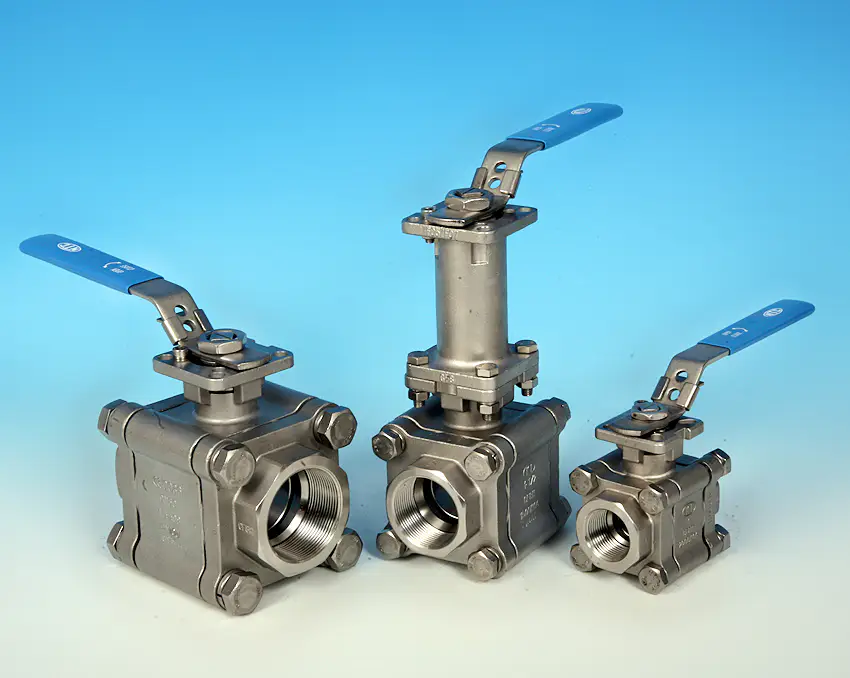

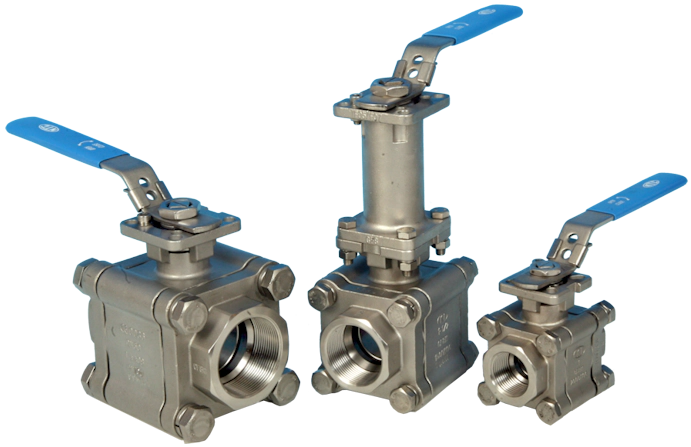

3-Pce Full Bore Heavy Duty Stainless Steel Direct Mount Ball Valve

Firesafe Design and Construction, certified API 607 5th Ed 2005, ISO 10497-5.
ASTM A351 CF8M 316 Stainless Steel construction, 316 Trim.
TFM 4215® (25% Carbon Filled TFM) Ball Seats, Grafoil Body Seals and Stem Packing. Ta-Luft self adjusting stem sealing. Nace MR-0175 compliant. ISO 15848 Certified. EN14432 Certified. DNV & Lloyds approved. ISO 5211 Direct Mounting Pad and Square stem for Automation. BSP, NPT, Socket Weld and Butt Weld Ends available.

Anti-static devices for Ball-Stem-Body. AtEx approved.
Class 800 (2000 psi) pressure rated 1/4” - 1”
Class 600 (1500 psi) 1.1/4” - 2”
Silicone Free. Valve suitable for use on Oil based Paints.

Options available:

50% S/S Filled PTFE Ball Seats
30, 60 & 90 Deg V-Ball for modulation duties
100mm high Spindle Extension for Insulation & Steam Actuation
Direct Mount Spring Handle/Lever
Fabricated Heating Jacket

Upstream Ball and Cavity Relief hole drilled into Ball

Butt-Weld Valve can be modified to make Socket Weld Ends for Metric Pipe Systems

Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 800 (1/4" - 1") & 600 (1.1/4" - 2")
Inspection & Testing: MSS SP-110

BSP Ends - ISO 7-1 (DIN 2999)

NPT Ends - ASME B1.20.1

Socket-Weld Ends - ASME B16.11

Butt-Weld Ends - ASME B16.25 (Sch 80)

Available size range: 1/4” - 2”


Installation, Operation & Maintenance Instructions

Torque Values

Top Works Please select a size to view information:
Stainless Steel 3-Pce Full Bore Heavy Duty Stainless Steel Direct Mount Ball Valve NTC KV-L80/81/82FS Stainless Steel 3-Pce Full Bore Heavy Duty Stainless Steel Direct Mount Ball Valve NTC KV-L80/81/82FS Stainless Steel 3-Pce Full Bore Heavy Duty Stainless Steel Direct Mount Ball Valve NTC KV-L80/81/82FS Stainless Steel 3-Pce Full Bore Heavy Duty Stainless Steel Direct Mount Ball Valve NTC KV-L80/81/82FS Stainless Steel 3-Pce Full Bore Heavy Duty Stainless Steel Direct Mount Ball Valve NTC KV-L80/81/82FS Stainless Steel 3-Pce Full Bore Heavy Duty Stainless Steel Direct Mount Ball Valve NTC KV-L80/81/82FS Stainless Steel 3-Pce Full Bore Heavy Duty Stainless Steel Direct Mount Ball Valve NTC KV-L80/81/82FS Stainless Steel 3-Pce Full Bore Heavy Duty Stainless Steel Direct Mount Ball Valve NTC KV-L80/81/82FS

For more information on all our other product ranges, visit www.gcstainless.co.uk

Certification

Certified ATEX DNV TA-Luft FDA
