high performance valves

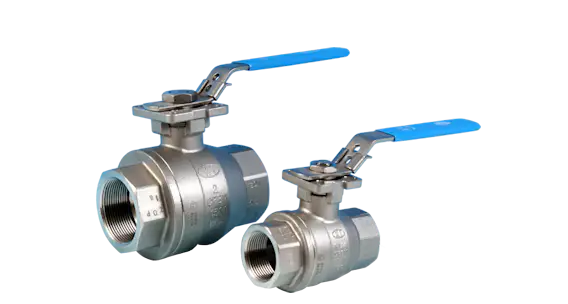

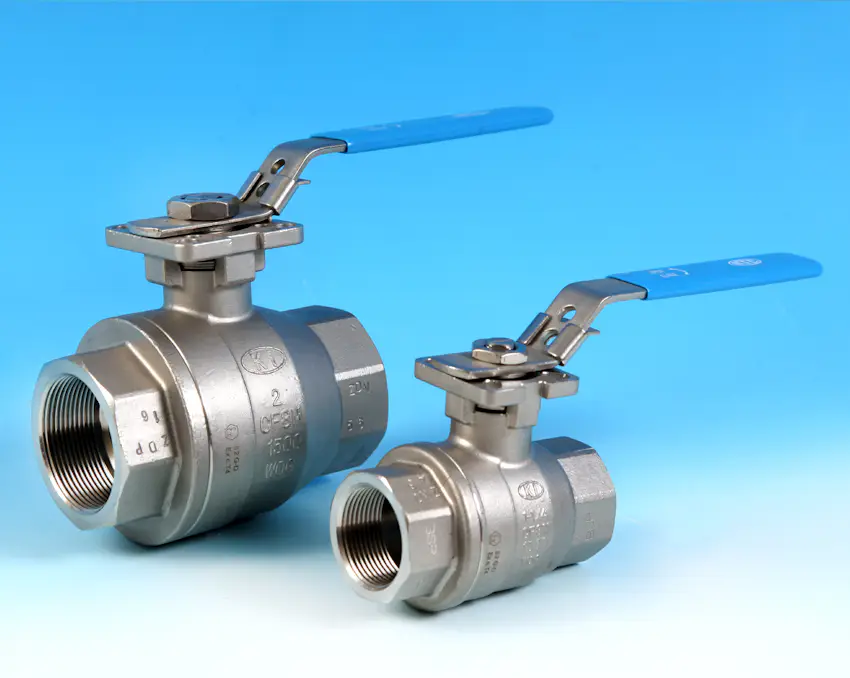

2-Pce Full Bore Fire Safe Heavy Duty Direct Mount Ball Valve

ASTM A351 CF8M 316 Stainless Steel construction, 316 Trim.
TFM 4215® Ball Seats with Grafoil Body and Stem Seals.
Ta-Luft self adjusting stem.
ISO 5211 Direct Mounting Pad and Square Stem for automation.
Anti-Static devices for Ball-Stem-Body. ATEX approved.
Nace MR-0175 compliant.

A cost effective valve suitable for Steam and High Temperature media.

Class 800 (2000 psi) pressure rated 1/2” - 1”
Class 600 (1500 psi) 1.1/4” - 3”
Silicone Free. Valve suitable for use on Oil based Paints.

BSP Ends - BSPP ISO 228/1

TFM 4215® is an FDA & WRAS certified material.

Silicone Free. Valve suitable for use on Oil based Paints.

Options available:

100mm high Spindle Extension for Insulation & Steam Actuation
Direct Mount Spring Handle/Lever

Upstream Ball and Cavity Relief hole drilled into Ball

Design Standard: MSS SP-110

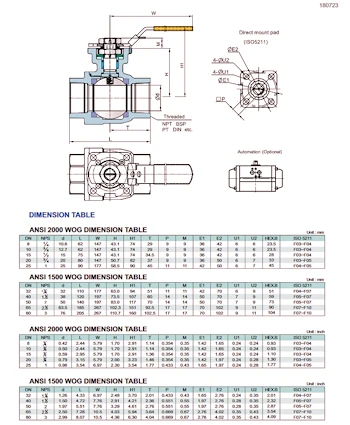

Wall Thickness: EN 12516-3 Class 800 (1/2" - 1") & 600 (1.1/4" - 3")
Inspection & Testing: MSS SP-110

Available size range: 1/2” - 3”


Certified ATEX Certificate DNV Certificate TA-Luft Certificate FDA Certificate FIRESAFE
