high performance valves

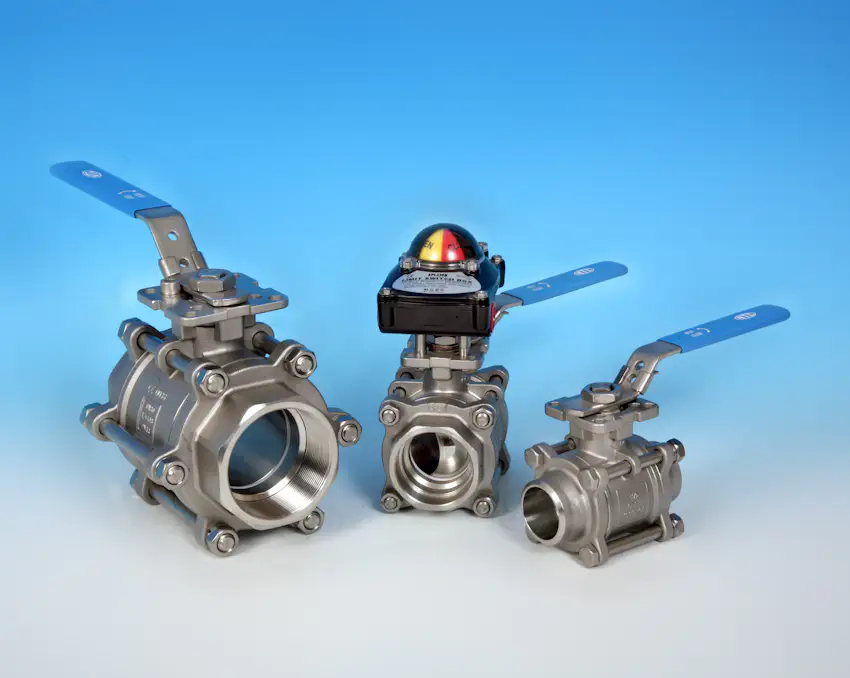

ASTM A351 CF8M 316 Stainless Steel Body and Trim.
TFM 1600® Ball Seats and PTFE Seals. Ta-Luft self adjusting stem.
TFM 1600® is an FDA & WRAS certified material.
ISO 5211 Direct Mounting Pad and Square Stem for automation.
Anti-Static devices for Ball-Stem-Body. ATEX approved.
1000 psi/g pressure rated. Nace MR-0175 compliant. BSP, NPT, Socket Weld & Butt Weld End connections ISO 15848 Certified. EN 14432 Certified. SIL 2 compliant. DNV & Lloyds Approved.
Silicone Free. Valve suitable for use on Oil based Paints.
50% S/S Filled PTFE Ball Seats
60 Deg V-Ball for modulation duties.
100mm high Spindle Extension for Insulation & Steam Actuation
Direct Mount Spring Handle/Lever
Upstream Ball and Cavity Relief hole drilled into Ball
Butt-Weld Valve can be modified to make Socket Weld Ends for Metric Pipe Systems
Design Standard: MSS SP-110
Wall Thickness: EN 12516-3
Inspection & Testing: MSS SP-110
BSP Ends - BSP IS0 7-1 (DIN 2999)
NPT Ends - ASME B1.20.1
Socket-Weld Ends - ASME B16.11
Butt-Weld Ends - ASME B16.25 (Sch 40)
Available size range: 1/4” - 4”
Installation, Operation & Maintenance Instructions
Top Works (Please select a size to view information):
