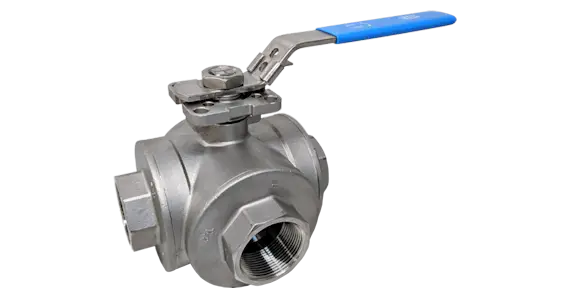

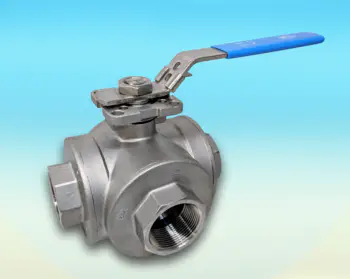

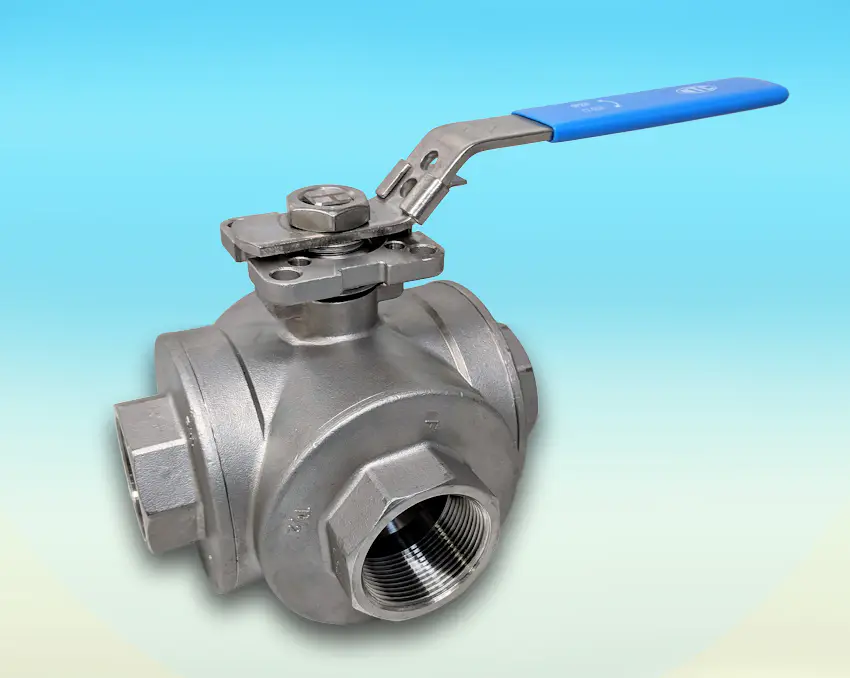

Stainless Steel 3-Way Full Bore BSP Screwed Direct Mount Ball Valve NTC KV-L53 (L-Port) NTC KV-L54 (T-Port)
Logo

NTC KV-L53 (L-Port)
NTC KV-L54 (T-Port)

high performance valves

3-Way Full Bore BSP Screwed Direct Mount Ball Valve

ASTM A351 CF8M 316 Stainless Steel construction, 316 Trim.
TFM 1600® Seats and Seals. Ta-Luft self adjusting stem sealing.
ISO 5211 Direct Mounting Pad and Square Stem for automation.
Anti-Static devices for Ball-Stem-Body.
Locking Lever at 90 degree increments.
1000 psi/g pressure rated. Nace MR-0175 compliant.
ATEX approved. SIL 2 Certified. ISO 15848 Certified

TFM 1600® is an FDA & WRAS certified material.
Silicone Free. Valve suitable for use on Oil based Paints.
BSP Ends - BSPP IS0 7-1

Available size range: 1/2” - 1.1/2”

Options available:

100mm/120mm high Spindle Extension for Insulation & Steam Actuation100mm high Spindle Extension for Insulation & Steam Actuation
Direct Mount Spring Handle Direct Mount Spring Handle/Lever

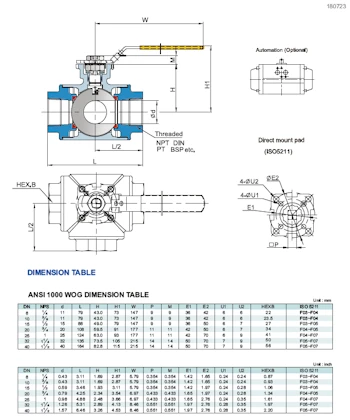

Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 400
Inspection & Testing: MSS SP-110

Certification

Certified ATEX Certificate DNV Certificate TA-Luft Certificate FDA Certificate
